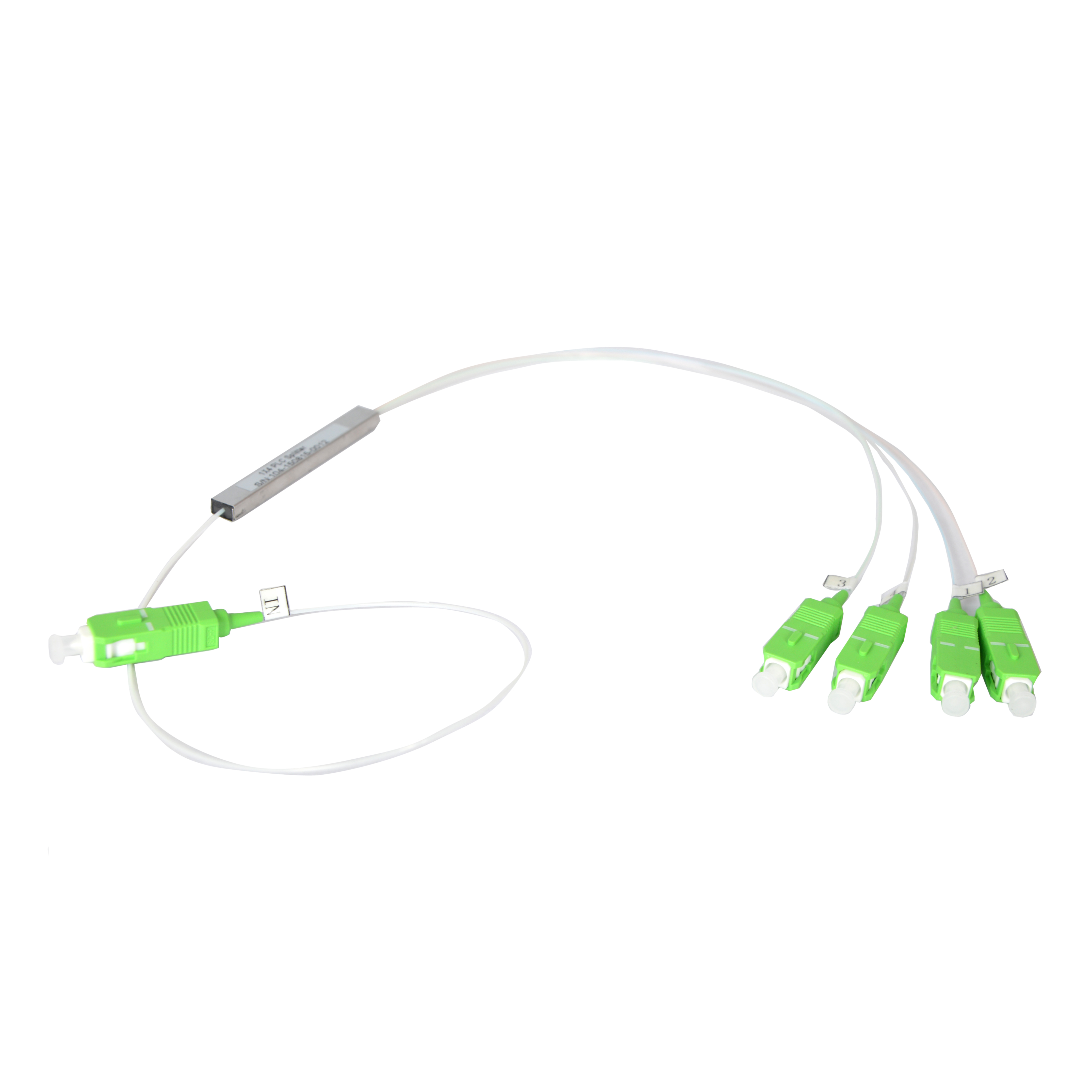

Fiber PLC 1x4 Optical Splitter , SC APC Micro Steel Tube Splitter

Product Categories

Fiber Cable Assembly [26]
Fiber Cable Patch Cord [33]
Fiber Optic Cable [87]
Fiber Optic Splitter [36]
Fiber Optic Loopback [6]
FTTH Solution [28]
Fiber Optic Connector [31]
Fiber Optic Adapter [24]
Fiber Optic Attenuator [9]
MPO Patch Panel [8]
Fiber Optic Terminal Box [19]
Fiber Optic Splice Closure [7]
Fiber Optic Media Converter [6]
WDM Wavelength Division Multiplexing [11]
Ethernet Patch Cable [6]
Fiber Cable Accessories [21]
Fiber Test Equipment [14]

A Fiber Solution Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Fiber PLC 1x4 Optical Splitter , SC APC Micro Steel Tube Splitter

Name: Fiber PLC 1x4 Optical Splitter SC APC Micro Steel Tube Splitter
Brand: ODM/OEM
Price: 3.30 USD

Fiber PLC 1x4 Optical Splitter , SC APC Micro Steel Tube Splitter Manufactures

Model Number : 1*4 fiber optic plc splitter

Place of Origin : China

Brand Name : ODM/OEM

Packaging Details : Carton box

MOQ : 500 pieces

Price : $3.30/pieces 500-999 pieces

Certification : RoHS, CE

Payment Terms : T/T, Western Union

Type : Optical Fibers

type : 1*4 fiber optic plc splitter

fiber core : G652D or G657A1

cable polishing : APC/PC/UPC

cable outer sheath : PVC

Return Loss (dB) : 55/50

Operating Temperature : -40~+85

Directivity (dB) : ≥ 55

Storage Temperature : -40~+85

adapter : SC

Contact Now

Best price Fiber optic 1*4 plc splitter SC/APC with micro steel tube

Product Features

1.Excellent Mechanical,Small Size

2.High Reliability

3.Low insertion Loss and low Polarization Dependent loss

4.High channel counts

5.Excellent Environmental Stability and Widely Used

6.FTTX Deployments(GPON/BPON/EPON)

7. Cable television (CATV)

8. CATV Links

9.Passive optical networks(PON)

Application

Fiber PLC 1x4 Optical Splitter , SC APC Micro Steel Tube Splitter

1, Split ratio 1:2,
2, Wide operating band: 1260-1650 nm,
3, 1.5 m long optical cables terminated with SC connectors,
4, Compact size,
5, High stability.

Specifications

1xN PLC Splitter Specification
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)					55/50
Operating Temperature					-40~+85
Directivity (dB)					≥ 55
Storage Temperature					-40~+85

Product Shows
