GJXFH 1 2 4 Core ftth drop cable G652d G657A1 G657A2 SM Indoor Fiber Optic Drop Cable

Product Categories
A Fiber Solution Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

GJXFH 1 2 4 Core ftth drop cable G652d G657A1 G657A2 SM Indoor Fiber Optic Drop Cable

Model Number : GJXFH

Place of Origin : China

Brand Name : ODM/OEM

Packaging Details : 2KM/PLYWOOD DRUM
DRUM SIZE: 40*40*37cm
WEIGHT: 21KG/DRUM

Supply Ability : 1000 Kiloampere/Kiloamperes per Week

MOQ : 10 kilometers

Price : $27.00/kilometers 10-19 kilometers

Payment Terms : T/T, Western Union

Type : Fiber Optic Cable

Number of Conductors : 1

Fiber count : 1 Core

Fiber Mode : Single Mode

Fiber Type : G657A1

Cable Color : Black, White, Gray

Cable Diameter : 5mm*2mm

Fiber Brand : Corning, OFS, YOFC

Cable Length : 1km 2km 3km

Jacket Material : LSZH

Messenger Wire : Steel or FRP

Application : Outdoor Overhead

Contact Now

Products Description

GJXFH 1 2 4 Core ftth drop cable G652d G657A1 G657A2 SM Indoor Fiber Optic Drop Cable

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Description
FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference thancommon indoor fiber cables and it's ideal for indoor cabling, end users directly cabin, and access network.

Applications:

1.Local Area Network (LAN) 2.Used end users directly cabling 3.FTTH (fiber to the home)indoor cabling and distribution(video, audio and data signals)

Features:

1.Same function of the common indoor fiber cables 2.Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance

Outer Jacket:

Flame resistant PVC or LSZH
Cable type
OD(mm)
tensile strength(N)
Bending Radius(mm)
Short-term
Long-term
Dynamic
Static
GJXFH-1Xn
(2.0±0.1)*( 3.0±0.1)
200
100
20D
15D
GJXFH-2Xn
(2.0±0.1)*( 3.0±0.1)
200
100
20D
15D
GJXFH-3Xn
(2.0±0.1)*( 3.0±0.1)
200
100
20D
15D
GJXFH-4Xn
(2.0±0.1)*( 3.0±0.1)
200
100
20D
15D
Storage/Working temperature(℃)
-20~+60
GJXFH 1 2 4 Core ftth drop cable G652d G657A1 G657A2 SM Indoor Fiber Optic Drop Cable
FTTH DROP CABLE

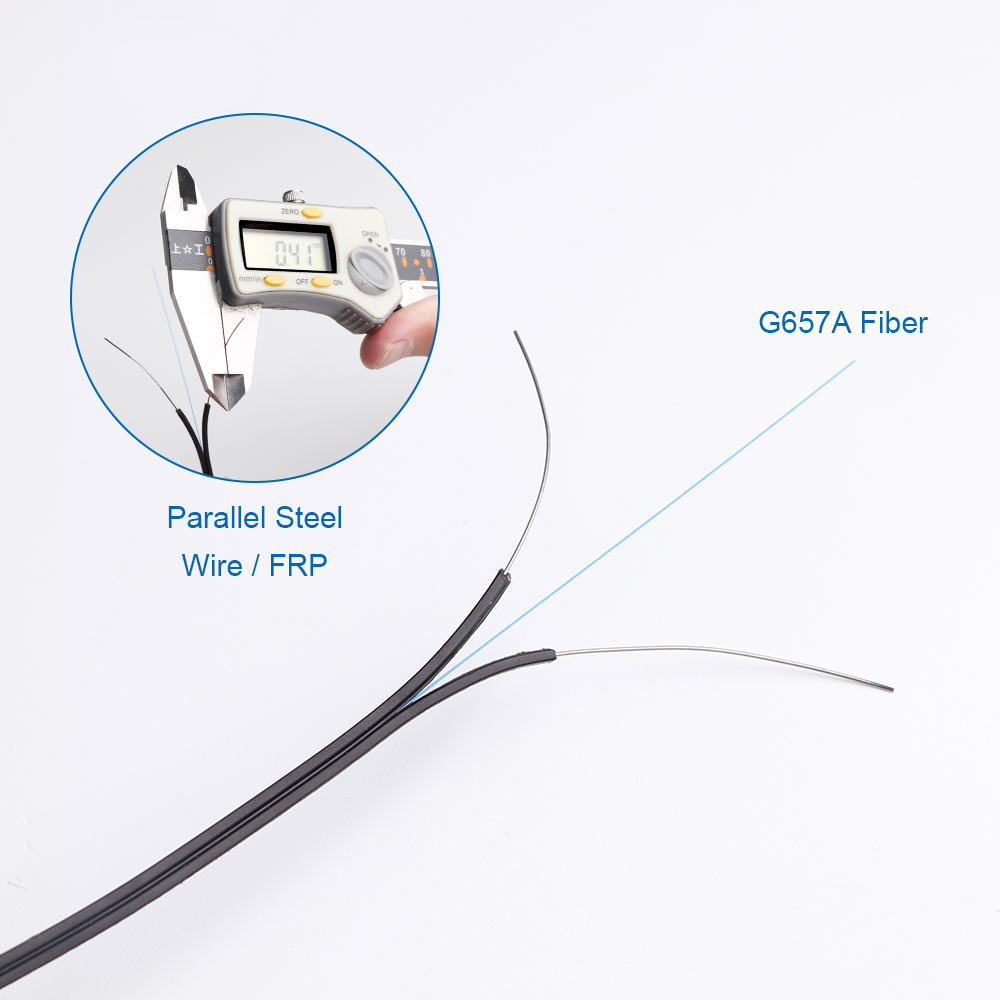

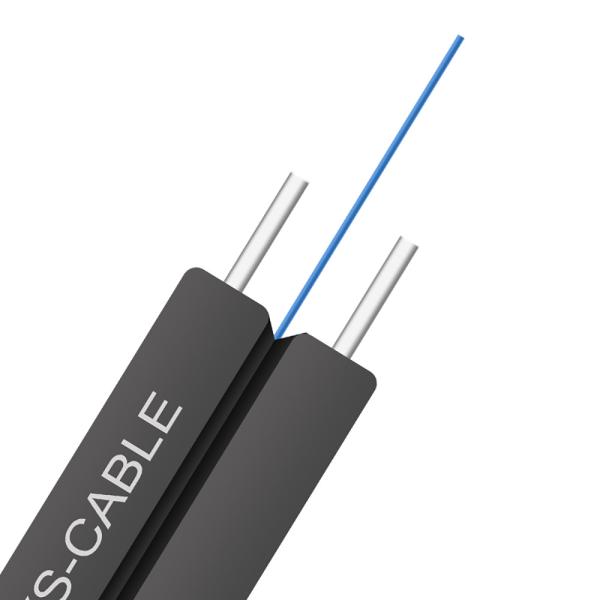

The optical fiber unit is positioned in the centre. Two steel wires or Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
GJXFH 1 2 4 Core ftth drop cable G652d G657A1 G657A2 SM Indoor Fiber Optic Drop Cable
GJXFH 1 2 4 Core ftth drop cable G652d G657A1 G657A2 SM Indoor Fiber Optic Drop Cable
GJXFH 1 2 4 Core ftth drop cable G652d G657A1 G657A2 SM Indoor Fiber Optic Drop Cable
GJXFH 1 2 4 Core ftth drop cable G652d G657A1 G657A2 SM Indoor Fiber Optic Drop Cable
Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.
GJXFH 1 2 4 Core ftth drop cable G652d G657A1 G657A2 SM Indoor Fiber Optic Drop Cable
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
