GYFTY 12 24 36 48 72 96 144 288 Core G652D Single Mode Stranded Loose Tube Fiber Optic Cable

Model Number : GYFTY

Place of Origin : China

Brand Name : ODM/OEM

Certification : CE RoHS FCC ISO9001

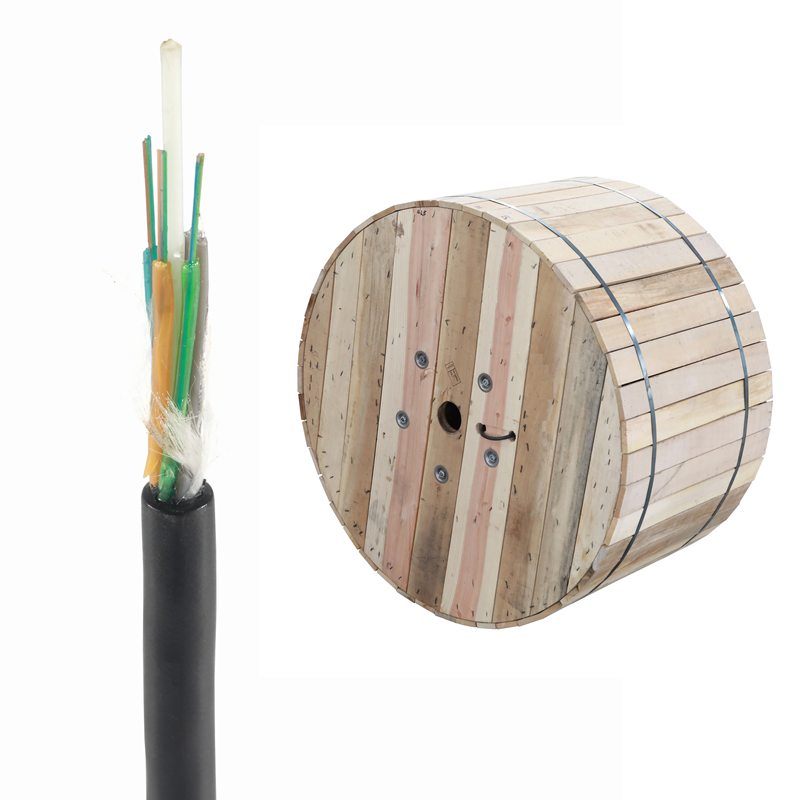

Packaging Details : 2 Km to 6 Km/drum , fumigated wooden or iron drum as customer required

Supply Ability : 1000 Kilometer/Kilometers per Day

MOQ : 5000 meters

Price : $0.30/meters 5000-99999 meters

Payment Terms : T/T, Western Union

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

Product name : GYFTY fiber optic cable

Application : Aerial and Duct

Jacket Material : PE

Fiber count : 12 core to 144core

Fiber type : OS1/OS2,OM1,OM2,OM3,OM4

Keywords : GYFTY

Function : Delivery signal light

Length per roll : 2km/3km/4km 24 core fiber optic cable ADSS

heath material : PE or AT for aerial fiber optic cable ADSS

Contact Now

Products Description

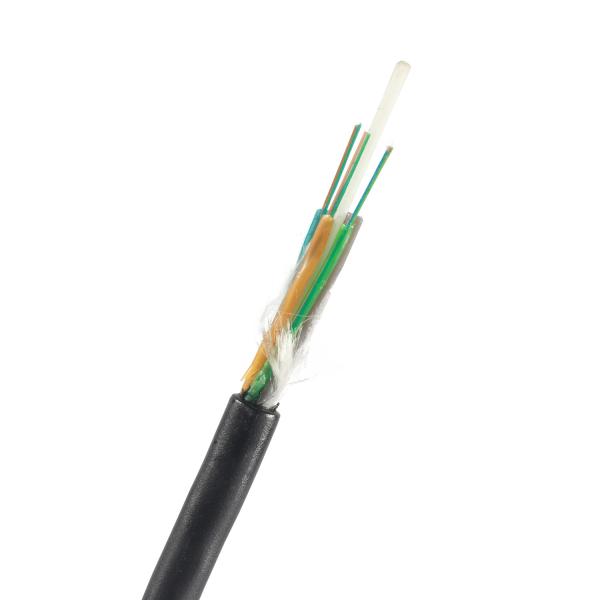

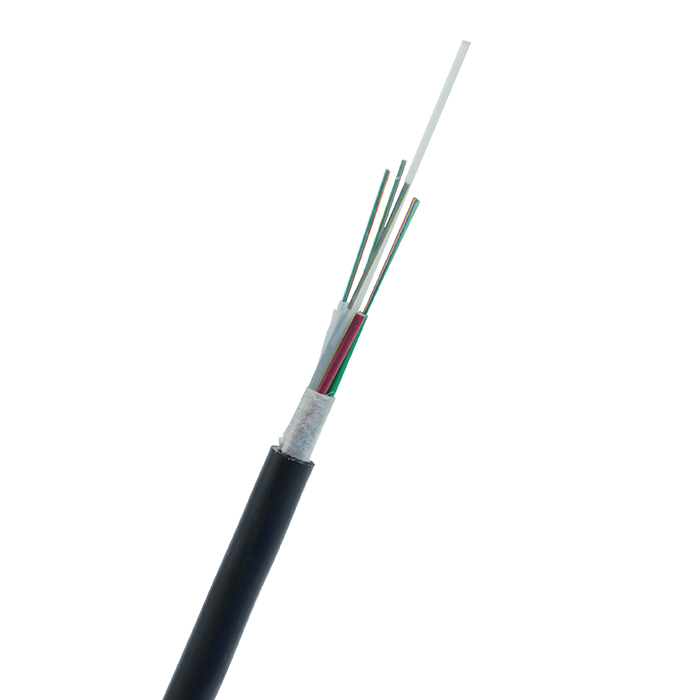

GYFTY 12 24 36 48 72 96 144 288 Core G652D Single Mode Stranded Loose Tube Fiber Optic Cable
GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thundeareas and high electromagnetic interface, Its mainly application is for aerial or duct use. We supply both single mode GYFTY cable and multi mode GYFTY cable.

Applications

Aerial and duct application Access network and local network in high electromagnetic interfering and frequently lighting areas

Features

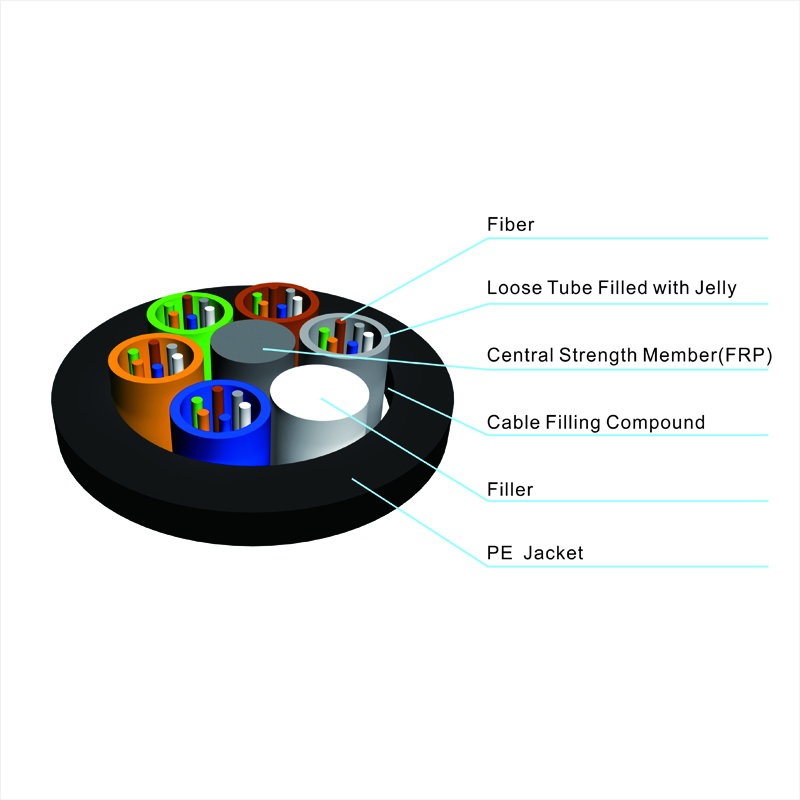

FRP ensuring resistance to electromagnetic interference Water blocking system ensures reliable waterproof performance Non-metal central strength has an excellent anti-electromagnetic ability
GYFTY 12 24 36 48 72 96 144 288 Core G652D Single Mode Stranded Loose Tube Fiber Optic Cable
Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)
Crush Resistance(N/100MM)
Bending Radius(mm)
Short-term
Long-term
Short-term
Long-term
Dynamic
Static
ADSS-2~48Xn
12.0±0.5
140.0
3600
1200
1000
500
20D
15D
ADSS-96Xn
14.0±0.5
165.0
3600
1200
1000
500
20D
15D
ADSS-144Xn
16.0±0.5
205.0
3600
1200
1000
500
20D
15D
Storage/Working temperature(℃)
-40~+70
GYFTY 12 24 36 48 72 96 144 288 Core G652D Single Mode Stranded Loose Tube Fiber Optic Cable
GYFTY 12 24 36 48 72 96 144 288 Core G652D Single Mode Stranded Loose Tube Fiber Optic Cable
Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.
GYFTY 12 24 36 48 72 96 144 288 Core G652D Single Mode Stranded Loose Tube Fiber Optic Cable
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
GYFTY 12 24 36 48 72 96 144 288 Core G652D Single Mode Stranded Loose Tube Fiber Optic Cable
